Bridge construction challenge with K'Nex

Wise related quote.

Introduction

A variety of challenges, investigations, and problems can be created related to bridges. This one used K'Nex as building materials. You may substitute other materials. I have also used oaktag, straws, thread, and straight pins.

Bridge vocabulary

Source for the definitions of these and more bridge terms.

Investigation notes

Procedure



Compression - capacity test

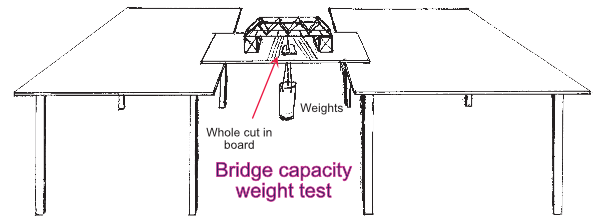

Bridge capacity weight test



Who would have thought a bridge could win awards? Does that make this bridge the GOAT?

Hitorical Smithfield Street bridge signs

Pictures of bridge tests

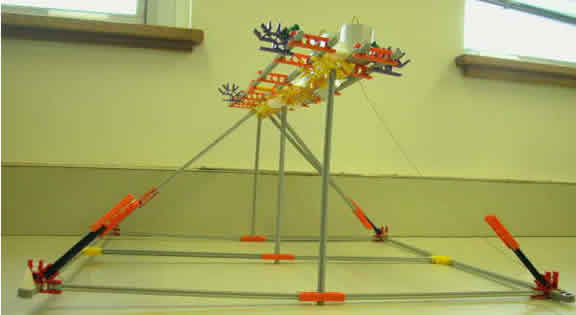

Test with thread added and rod removed

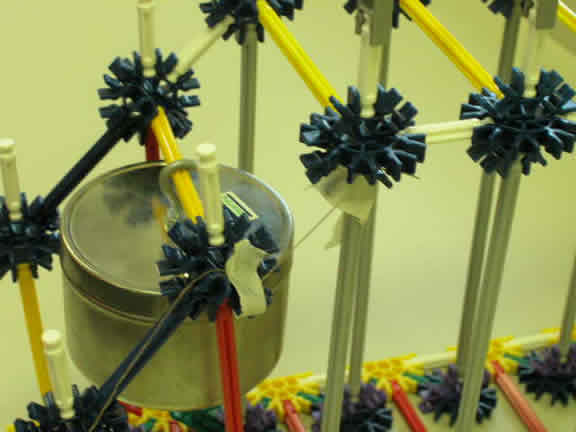

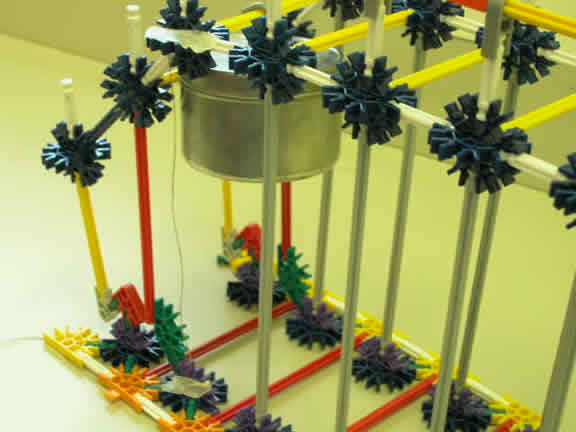

Test with kilogram weight

Test with thread added and two piers removed

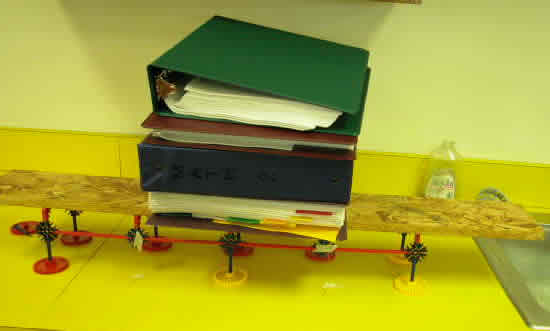

Test with four notebooks

Test with thread added and grey rod removed

Test with kilogram weight

Test with thread added and white rod removed

Test with kilogram weight



Statements made when testing bridges:

C. Stading, K. Flanagan, L. Haisch, K. Dusatko, S. Simpson, A. Baumann, M. Tobias, Angie Simpson, M. Foster, and C. Mettler



Test bridges

Piers & beam

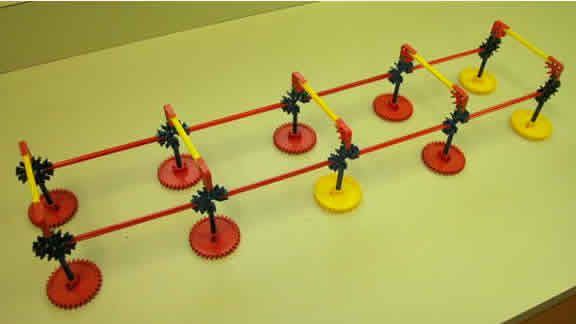

Piers



Piers, beam, & rails

Pier bridge



Trusses, pier, & deck

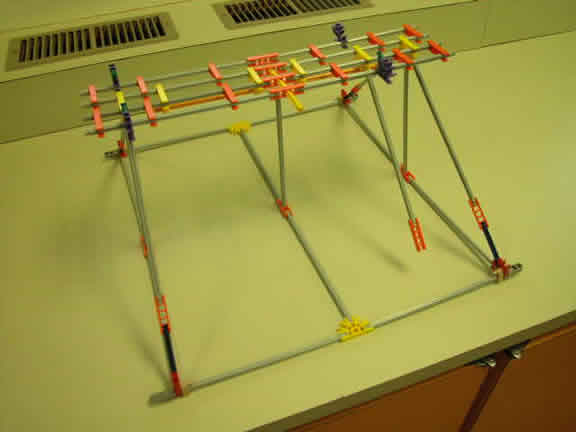

Truss under bridge





Bridge photo album

Suspension bridge with stone piers

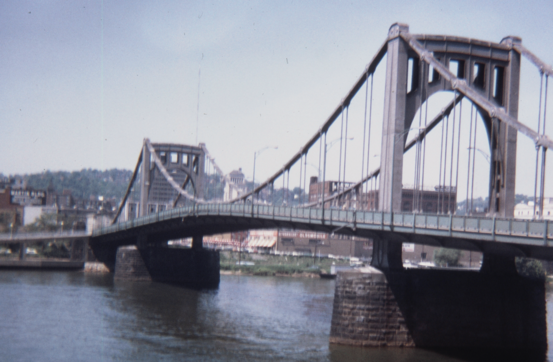

Suspension bridge





Beam bridge with piers

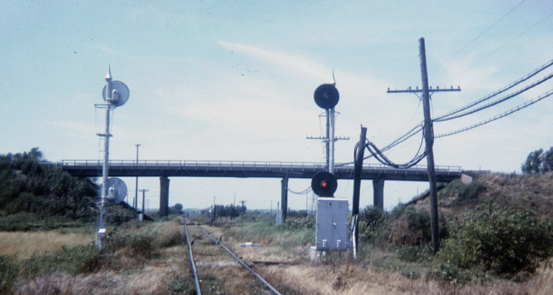

Concrete beam bridge

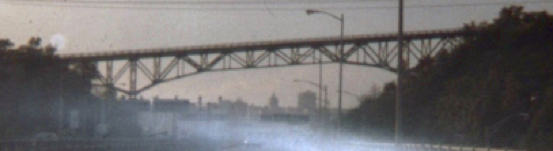

Trestle below road bridge

Metal truss below deck





Beam bridge with piers

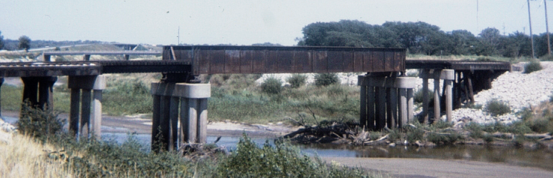

Metal beam and concrete pilars bridge





Tressle & beam bridge

Metal beam and wood tressle bridge





Tressle above deck bridge with piers and some tressle below

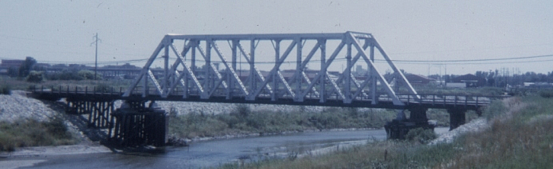

Metal tressle above deck bridge



Arch below deck bridge

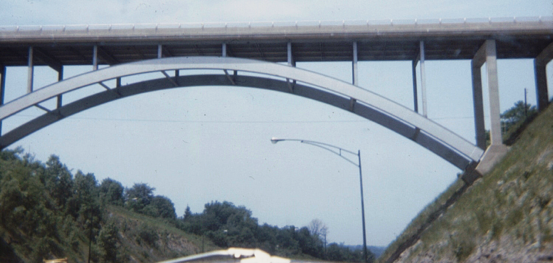

Metal arch below deck bridge





Many stone arches bridge

Stone arches below deck bridge





Swinging bridge Rock City

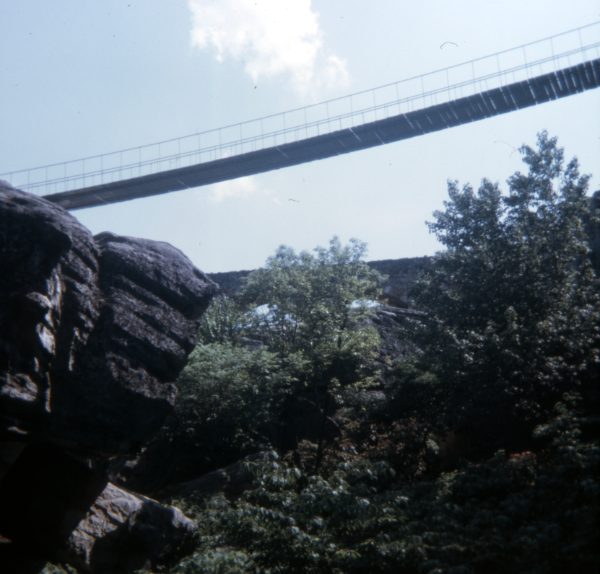

Swinging bridge Rock City





Stone bridge with culverts

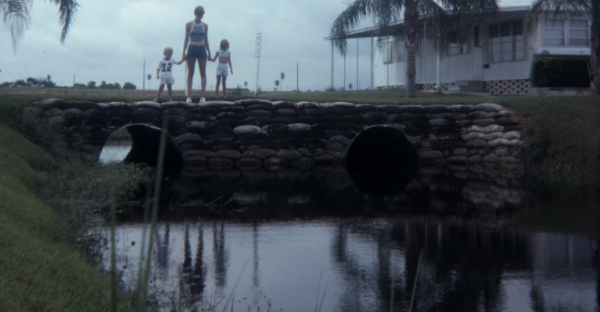

Bridge and culvert





Beams and piers bridge

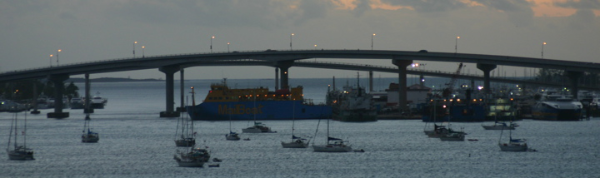

Bridge and piers





First Sunshine skyway bridge in Florida 1977

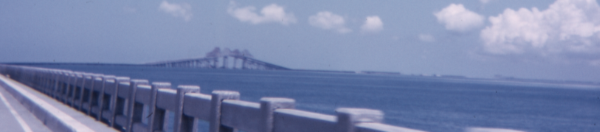

Sunshine Skyway 1977





Suspension plus pier & beam bridge

Bridge suspension plus

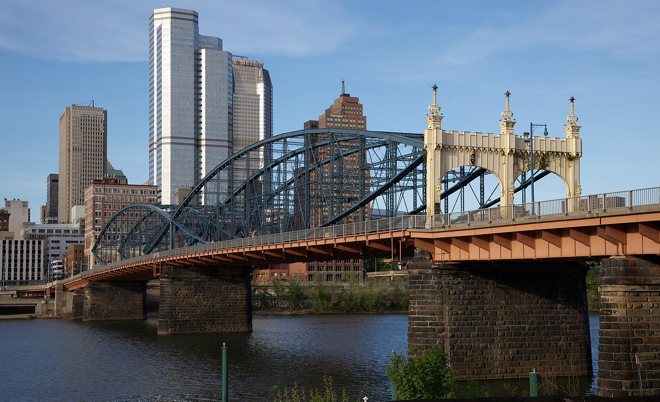

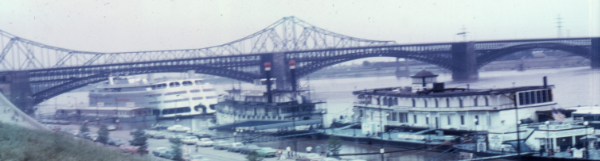

Suspension above & arch below bridge - Pittsburgh Monogahala River

Bridge Monongahala River





Arch bridge in Point Park Pittsburgh

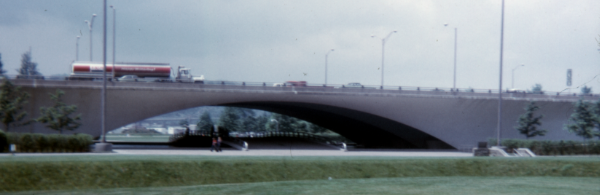

Bridge Pittsburgh PointPark

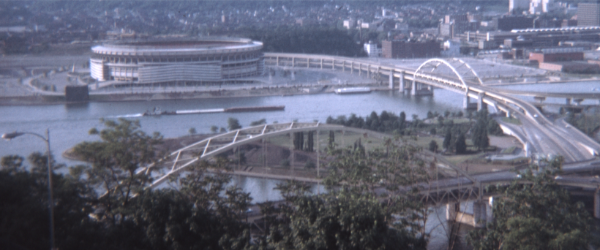

Three rivers bridges in Pittsburgh

Bridges and three rivers

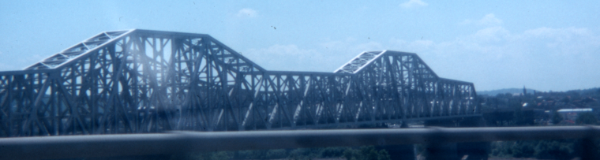

Tressel bridge above road

Trestle bridge

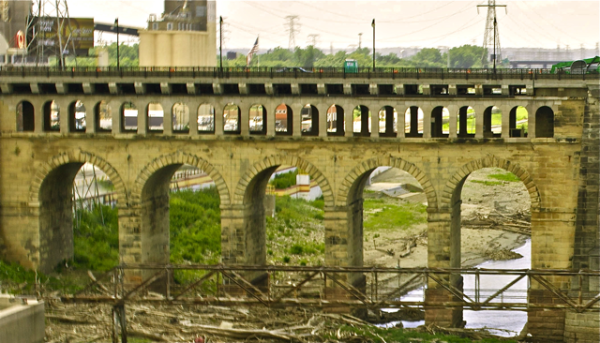

Large and small arches bridge

Bridge with many arches

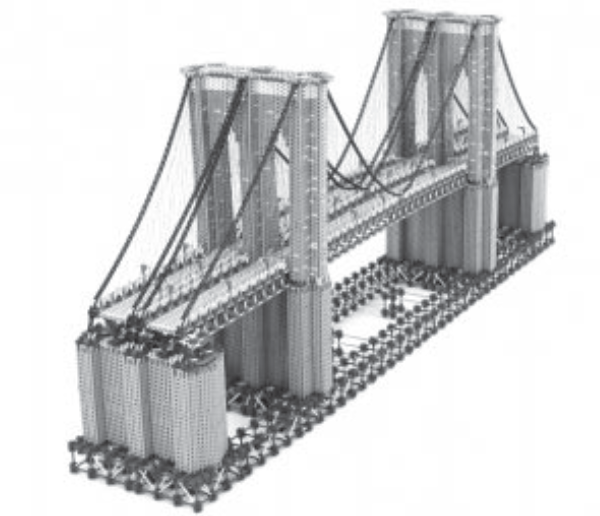

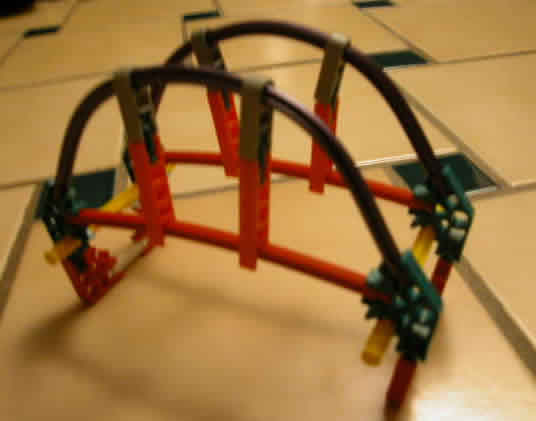

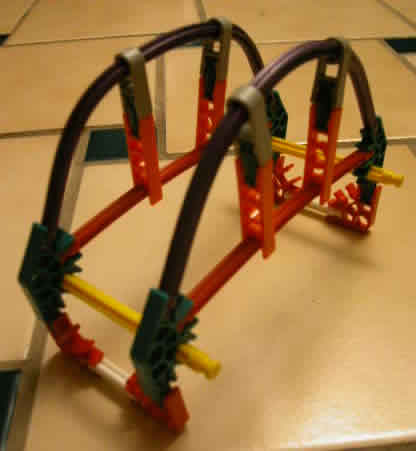

K'Nex suspension bridges

Suspension bridge Suspension bridge Suspension bridge
